«Ekzarta» - kinesiotherapy suspension system and operation method.

Заказать онлайн

Описание

«EKZARTA» INCLUDES: integrated methods for diagnosing and restoring the functionality of fascial muscular chains and a kinesitherapy suspension system.

The equipment is used together with the Exarta method to examine the functions of the fascial muscular chains and to create and implement a rehab program based on the diagnosis. The optimal load level is achieved with different exercises. The rehab program is aimed at restoring neuromuscular control, eliminating biomechanical disorders in joints and developing correct movement patterns.

  • SELECTION OF THE OPTIMAL LOAD LEVEL.
  • RESTORATION OF THE NEUROMUSCULAR CONTROL.
  • ELIMINATION OF PAIN SYNDROME.
  • DEVELOPMENT OF CORRECT MOVEMENT PATTERNS.

APPLICATIONS:

  • Spine and/or joint pain;

  • Arthritis of the large joints;

  • Frozen shoulder;

  • Stiff-person syndrome;

  • Spinal disc herniation;

  • Infantile cerebral palsy;

  • Stroke;

  • Spinal cord injuries;

  • Rehab fitness.

Operation

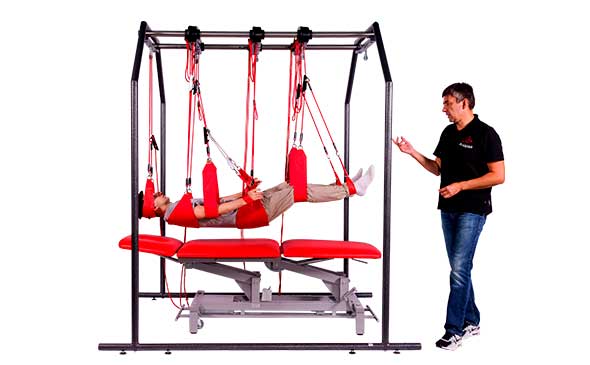

The patient is placed on a table driven by a Kinezo-Expert electric drive. Slings are fixed under the patient's limbs, pelvis and/or chest using carabiners on cables hanging down from the ceiling structure. A wide sling mounted on thick elastic straps can be placed under the patient's body to facilitate exercising. In the stretched position, this sling is used to lift the body or its parts upward. Then the table is lowered or the sling cables are pulled up lifting the patient's arms and legs. As a result, the patient's body or its parts are suspended. A rehabilitation session includes a number of exercises.

TECHNICAL SPECIFICATIONS:

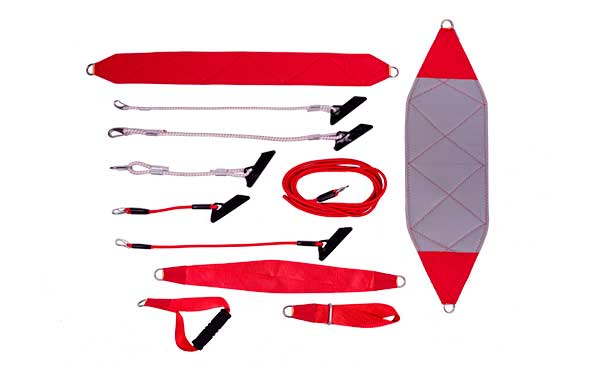

  • complete ceiling structure – overall dimensions (L x W x H), mm/weight, kg: 1780 x 800 x 230 / 35;

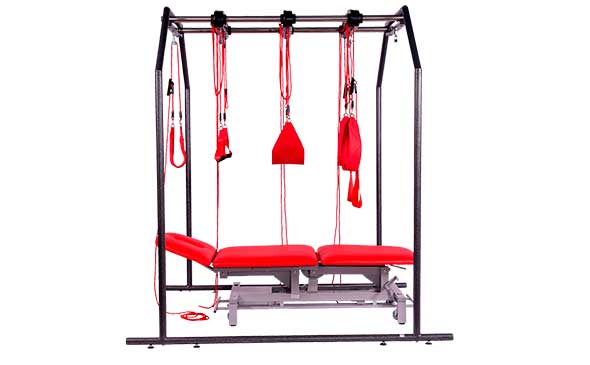

  • free-standing structure – overall dimensions (L x W x H), mm: 2190 x 1780 x 2300;
  • length of the cable with a carabiner, mm: 5000;
  • under-pelvis suspension sling, overall dimensions (L x W), mm: 890 x 250;
  • leg suspension slings, overall dimensions (L x W), mm: 950 x 110;
  • neck sling, overall dimensions (L x W), mm: 730 x 50;
  • arm suspension slings, overall dimensions (L x W), mm: 340 x 50;
  • arm suspension slings with handles, overall dimensions (L x W), mm: 340 x 50;
  • elastic strap with a clamp for the pelvis, legs and torso, length, mm: 480;
  • elastic strap with a clamp for the pelvis, legs and torso, length, mm: 700;
  • elastic strap with a clamp for arms and head, length, mm: 480;
  • elastic strap with a clamp for arms and head, length, mm: 700;
  • short strap with a clamp, length, mm: 450;
  • long strap with a clamp, length, mm: 760.
